4. Distance sensor and Rubber Pads

Written By: MyBar.io
  • Comments: 6
  • Favorites: 0
  • Completions: 1

Difficulty

Moderate

Steps

6

Time Required

00:05:00 - 00:10:00

Sections

1

Flags

0

  1. Acrylic front

    • Acrylic front

    • Wire

    • Distance sensor

    • Screws M3 6mm (Silver) (2x)

    • Sensor holder front (3d Printed)

    • Sensor holder back (3d Printed)

    Edit

  2. Remove the protective paper from the acrylic. Insert the sensor holder front from the side of the acrylic without the protective paper. Turn the acrylic around and position the sensor holder back aligned with the holes for the screws on the sensor holder front.

    • Remove the protective paper from the acrylic.

    • Insert the sensor holder front from the side of the acrylic without the protective paper.

    • Turn the acrylic around and position the sensor holder back aligned with the holes for the screws on the sensor holder front.

    • Position the distance sensor on top of the sensor holder back and align the holes for the screws.

    • Inset and tight the screws.

    • Connect the wire with the red wire starting all the way on the left of the distance sensor.

    Edit

  3. First, position the acrylic front in the case with the sensor facing out. Place the "Top front bottom panel". Take the top front bottom panel and insert two M3 nuts.

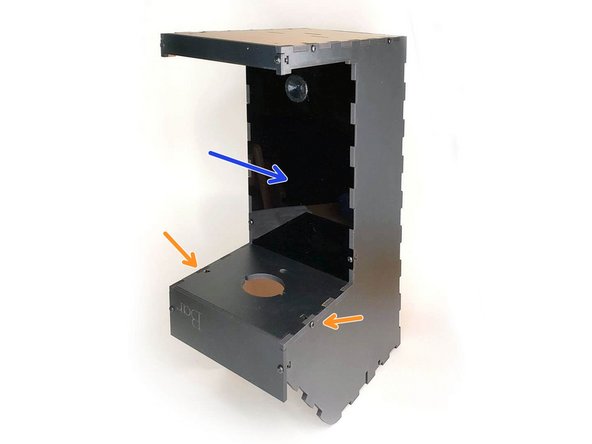

    • First, position the acrylic front in the case with the sensor facing out.

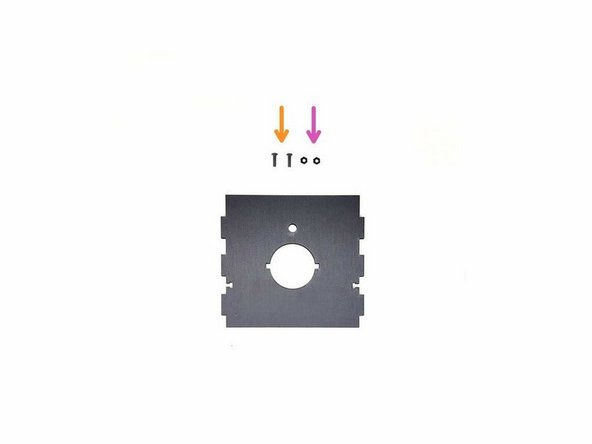

    • Place the "Top front bottom panel".

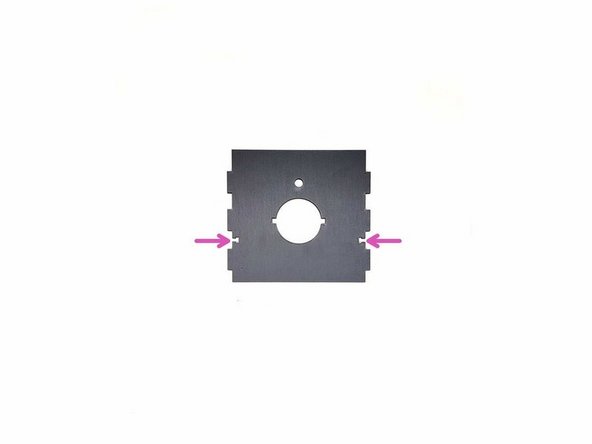

    • Take the top front bottom panel and insert two M3 nuts.

    • Inset and tight the M3 8mm screws (Black) (2x)

    Edit

  4. Screws M3 6mm (Silver) (4x)

    • Screws M3 6mm (Silver) (4x)

    • Rubber Pads (4x)

    Edit

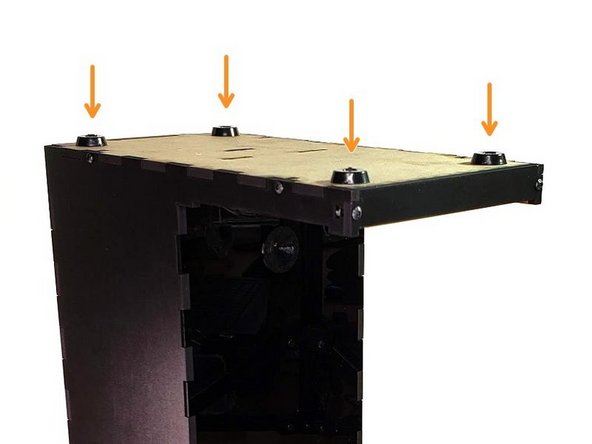

  5. Using the screws attach the pads to the case.

    • Using the screws attach the pads to the case.

    Edit

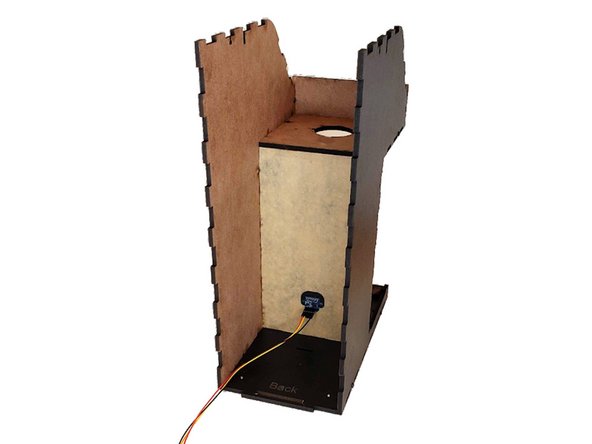

  6. Great job! If you have transparent motors please go to 5a. Pumps column assembly. If your motors are white 5b. Pumps column assembly
    Edit
Finish Line

One other person completed this guide.

Author

MyBar.io

Member since: 03/18/2019

650 Reputation

7 Guides authored

One Comment

Some problems on this step. The back panel has evolved to a more elegant design that no longer needs the screws.

Also, the 3D printed sensor holder (the round piece) was too large for the hole and needed sanding. I tried to force it and cracked the acrylic.
