  1. Pumps Column
    • Pumps Column

    • Pumps (9x)

    • Wood Screws (Phillips) (18x)

    • Phillips Screwdriver

  2. Attach the pumps to the WHITE side of the column using the silver screws and the Phillips Screwdriver. Install all 9 pumps.
    • Attach the pumps to the WHITE side of the column using the silver screws and the Phillips Screwdriver.

    • Install all 9 pumps.

    • Pumps rotate clockwise. The left tubes (Inlet) go to the back and the tubes on the right (Outlet) go to the front.

  3. Pro Tip: Using blue tape, mark each tube on the right of the motor with the number of the pump. Insert the tubes on the right of each motor through the big column hole. Insert the LED wire through the small hole on the column.

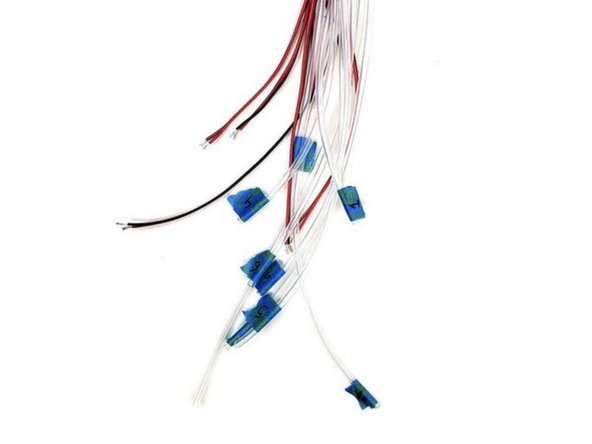

    • Pro Tip: Using blue tape, mark each tube on the right of the motor with the number of the pump.

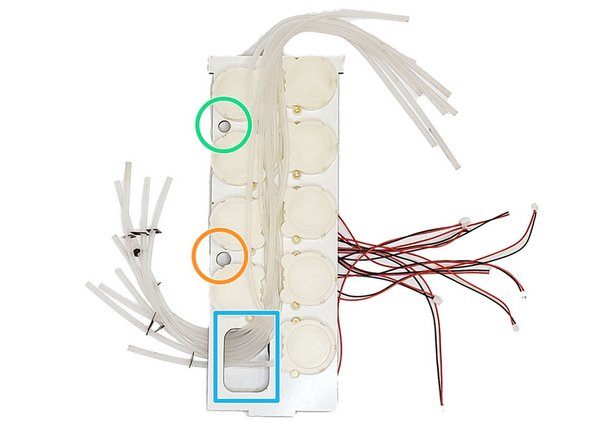

    • Insert the tubes on the right of each motor through the big column hole.

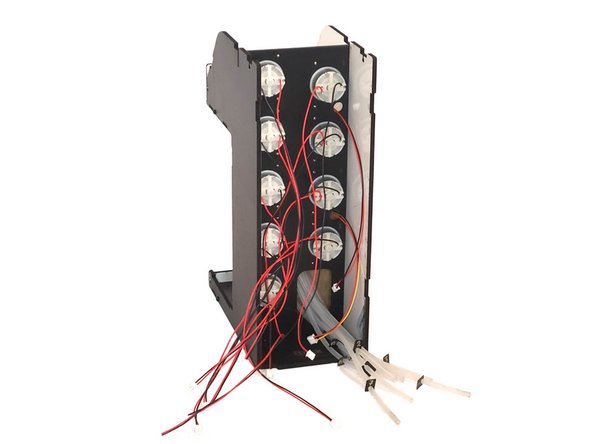

    • Insert the LED wire through the small hole on the column.

    • Insert the distance sensor wire through the small hole on the column.

    • Place the column inside the case.
