3. Case assembly

Written By: MyBar.io
  • Comments: 8
  • Favorites: 0
  • Completions: 1

Difficulty

Easy

Steps

9

Time Required

00:10:00 - 00:30:00

Sections

1

Flags

0

  1. Base

    • Base

    • Right side panel

    • Screws M3 10mm (Black) (2x)

    • M3 Nuts (2x)

    Edit

    Panel now says "B" instead of "Back" (which probably was supposed to be "Bottom" anyway).

    Guido Kimble - Reply

    It is the back, considering that this piece goes horizontally. We are planing on switching it back to the full word.

    MyBar.io -

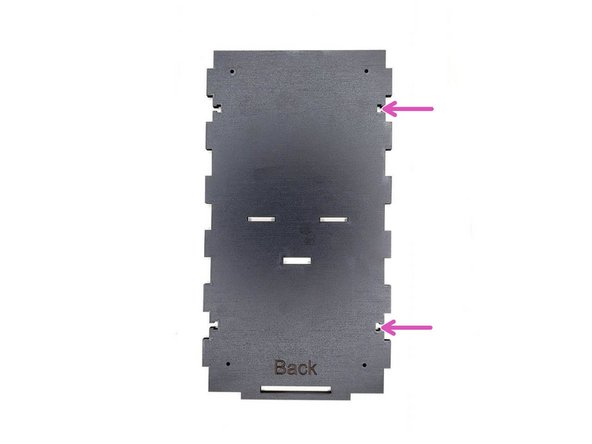

  2. Take the base and insert two M3 nuts. In case you can't press the nuts in, don't use excessive force. Rotate the nut until it falls in place.

    • Take the base and insert two M3 nuts.

    • In case you can't press the nuts in, don't use excessive force. Rotate the nut until it falls in place.

    • Connect the base with the right side panel.

    • Insert the M3 10mm screws through both holes in the right side. Start tightening until you reach the M3 nut. Tighten both screws all the way.

    Edit

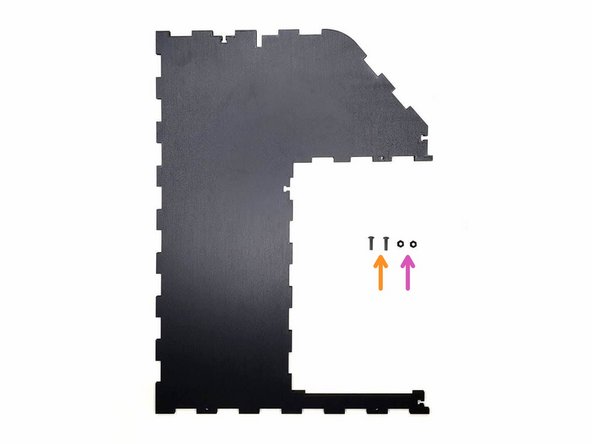

  3. Left side panel

    • Left side panel

    • Screws M3 10mm (Black) (2x)

    • M3 Nuts (2x)

    Edit

  4. Take the base and insert two M3 nuts. In case you can't press the nuts in, don't use excessive force. Rotate the nut until it falls in place.

    • Take the base and insert two M3 nuts.

    • In case you can't press the nuts in, don't use excessive force. Rotate the nut until it falls in place.

    • Connect the base with the left side panel.

    • Insert the M3 10mm screws through both holes in the right side. Start tightening until you reach the M3 nut. Tighten both screws all the way.

    Edit

    I'm curious why the black side is facing up, but I'm going to do it like the picture shows.

    Guido Kimble - Reply

    This is so that the front part, where the water tray goes, has a black bottom instead of a white one. White in the bottom is totally fine.

    MyBar.io -

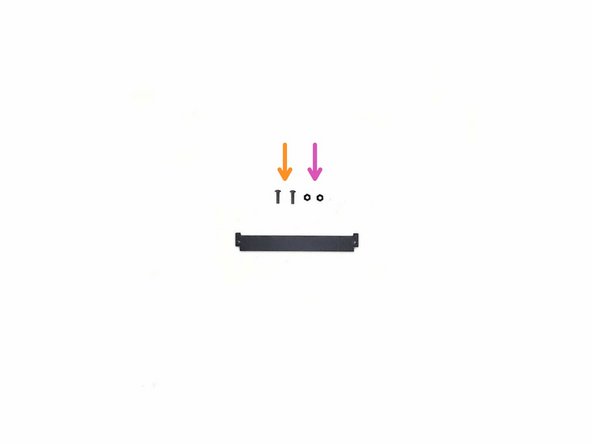

  5. Bottom front panel

    • Bottom front panel

    • Screws M3 10mm (Black) (2x)

    • M3 Nuts (2x)

    Edit

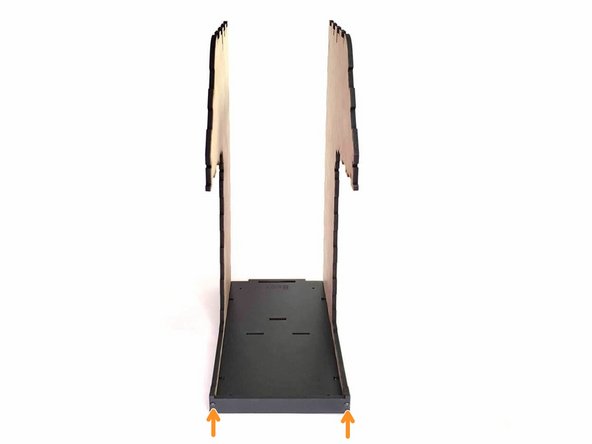

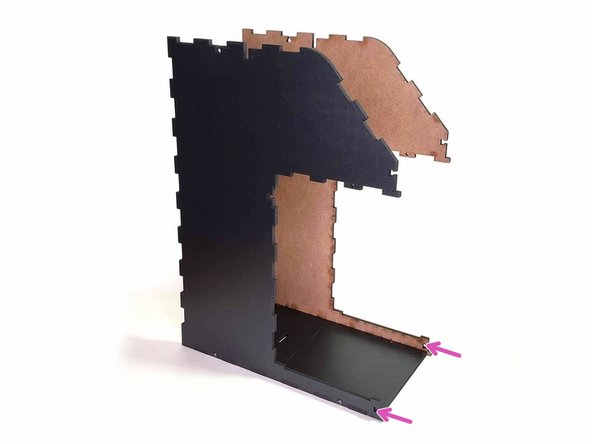

  6. Take the left side panel and the right side panel and insert the two M3 nuts. In case you can't press the nuts in, don't use excessive force. Rotate the nut until it falls in place.

    • Take the left side panel and the right side panel and insert the two M3 nuts.

    • In case you can't press the nuts in, don't use excessive force. Rotate the nut until it falls in place.

    • Connect the left side panel and the right side panel with the bottom front panel.

    • Insert the M3 10mm screws through both holes in the right side. Start tightening until you reach the M3 nut. Tighten both screws all the way.

    Edit

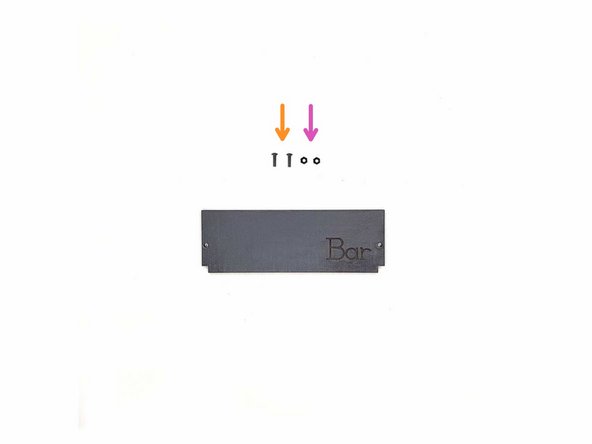

  7. Top front panel

    • Top front panel

    • Screws M3 10mm (Black) (2x)

    • M3 Nuts (2x)

    Edit

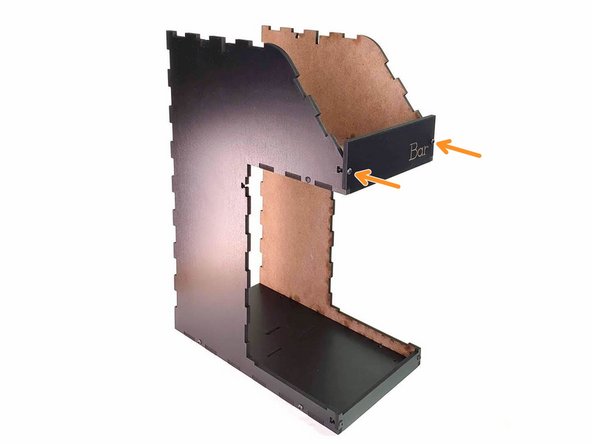

  8. Take the left side panel and the right side panel and insert the two M3 nuts.

    • Take the left side panel and the right side panel and insert the two M3 nuts.

    • In case you can't press the nuts in, don't use excessive force. Rotate the nut until it falls in place.

    • Connect the left side panel and the right side panel with the top front panel.

    • Insert the M3 10mm screws through both holes in the right side. Start tightening until you reach the M3 nut. Tighten both screws all the way.

    Edit

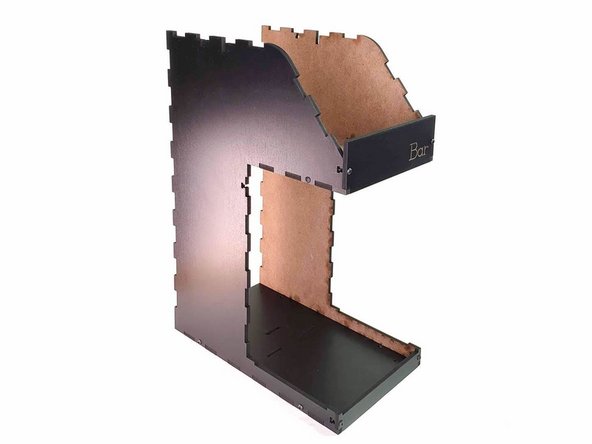

  9. This step is done, great job!
    Edit
Finish Line

One other person completed this guide.

Author

MyBar.io

Member since: 03/18/2019

650 Reputation

7 Guides authored

4 Comments

My kit needed a different order of assembly. Step 8 of this section should be done after the installation of the acrylic in the 4th part of the instructions

Dave@innonavi.com - Reply

Thanks for pointing that out! I noticed, the picture in Step 8 is confusing because it looks like the panel on the bottom is there too, but instead, it should be placed in Step 3 of the following guide.

MyBar.io -

Should have link to next step.

And why are pictures so small for steps 5,7, and 9? Why not fill the space?

Dave@innonavi.com - Reply

This is to preserve the perspective and not make it seam like these are more prominent pieces.

MyBar.io -
