2. Electronics

Written By: MyBar.io
  • Comments: 6
  • Favorites: 0
  • Completions: 1

Difficulty

Moderate

Steps

5

Time Required

00:10:00 - 00:20:00

Sections

1

Flags

0

  1. Back panel

    • Back panel

    • Spacers M3 6mm (4x)

    • Screws M3 4mm (Black) (4x)

    Edit

  2. Insert the spacers on the back panel. Using the M3 4mm screws mount the circuit board to the spacers.

    • Insert the spacers on the back panel.

    • Using the M3 4mm screws mount the circuit board to the spacers.

    Edit

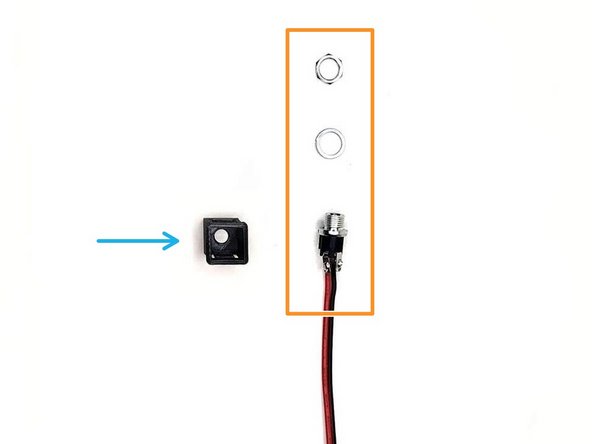

  3. Power Jack

    • Power Jack

    • Power Jack holder

    Edit

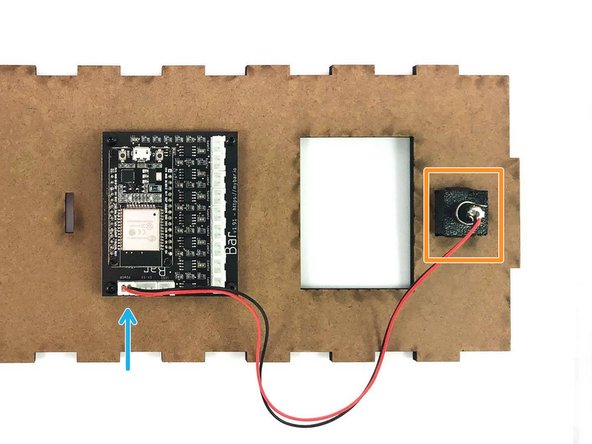

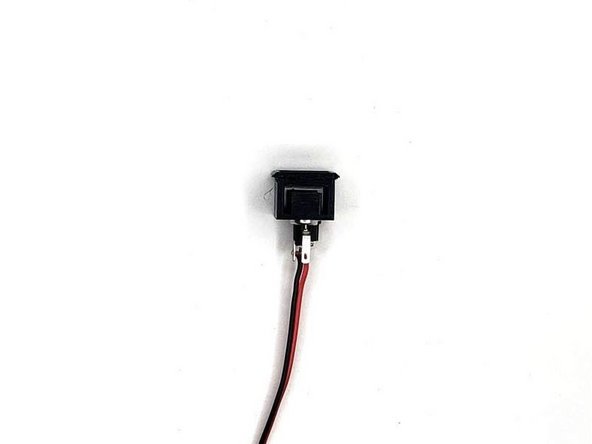

  4. Insert the washer into the power jack. Insert the power jack (with the washer) from the back of the holder and secure it with the nut.

    • Insert the washer into the power jack.

    • Insert the power jack (with the washer) from the back of the holder and secure it with the nut.

    • Insert the power jack holder into the back panel

    • Connect the power wire to the circuit board

    Edit

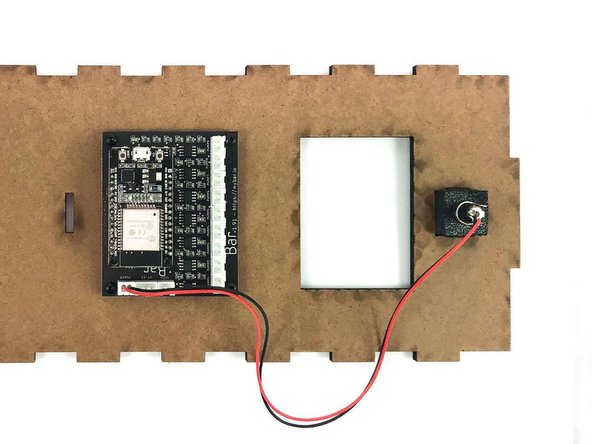

  5. Perfect! Electronics ready. Next, lets start with the 3. Case assembly
